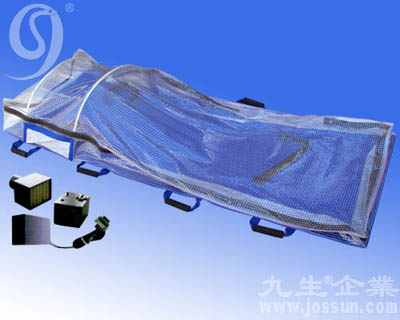

Isolation chamber Stretcher

Model:JS-ISt1  No.:68542116 (BLUE)

Isolation chamber Stretcher for evacuation of patients suspected of infection with the Air-borne diseases.

Transfer of these kinds of patients, from the scene of the event to the hospital, or from one hospital to another, requires complete isolation. Ambulance crews do use special protective gear, but the appropriate isolation is also required for the infected patient.

The new stretcher is a sort of giant chamber that completely isolates the patient from their surroundings, protecting the crew and the environment from possible infection by the patient. The bed allows transfer of a patient weighing up to 250 kg.

The new stretcher includes an air filtering system, creating low pressure in the stretcher space by pumping infected air out of the stretcher in the area of the head, passing it through a filter and then releasing it outside.

With the quick zipper open the stretcher, lift the patient into it. Then immobilizer the patient’s shoulders and legs. Both side of the head, there are two air filtering area. With low pressure in the space, Clean air is pulled into the chamber. These can effectively isolate 99% diseases.

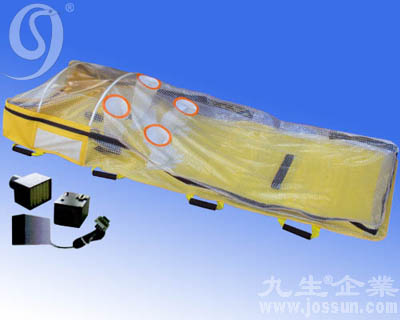

The Model:JS- ISt2  No.:68542117 (YELLOW)

Increased four isolation gloves. These convenient ambulance crews treatment and resuscitation of the patient, who remains in total isolation.

Powered by three kinds of power supply---AC, external DC and internal battery. It can be attached to the cigar lighter (DC12V) directly during transport use such as in ambulance.

The 12V Rechargeable batteries can Continuous supply of 9 hours power.

Supply voltage use scope:

AC95V-265V50Hz or 60Hz

DC: 12V

Pressure:-6pa

Product size:200x70x42cm

Packing size:75x35x55cm

Limited Loading: 250kg

G.W.:7Kg
